DSEM870-02

7″ Capacitive colour touchscreen – Programmable display. 4 x inputs. 4 x outputs. 4 I/O. 2 x CAN ports.

Option to Mount in Landscape/Portrait Mode.

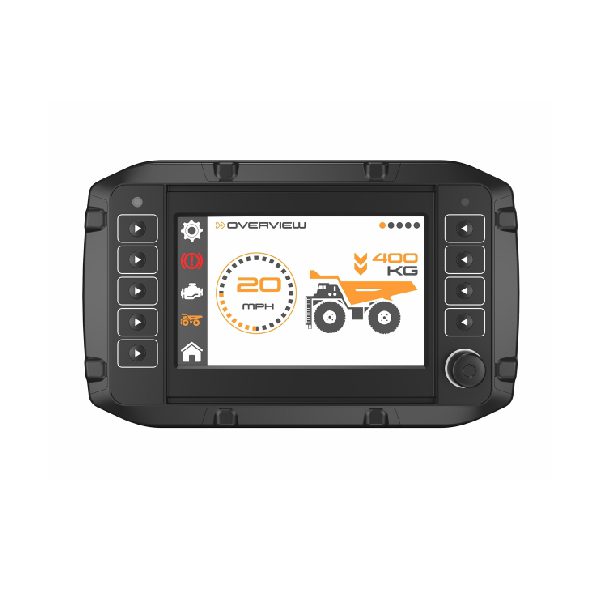

The DSEM870 is a 7″ programmable display designed for use on vehicles and off highway machinery. Developed for use as a standalone product or with the DSEM640 programmable controller, the DSEM870 provides users with outstanding flexibility. The M870 is configured using CODESYS 3.5 (M870-01 / M870-02 / M870-03) or Qt (M870-04).

Overall Size

272 mm x 165 mm x 81 mm (10.8” x 6.3” x 3.15”)

Weight

1.25kg

Cut-Out

231 mm x 133 mm (9.09″ x 5.24″)

Product Variants

M870-01 – CODESYS (Standard)

M870-02 – CODESYS (Touchscreen)

M870-03 – CODESYS (Standard with WebVisu)

Download Product Documents
