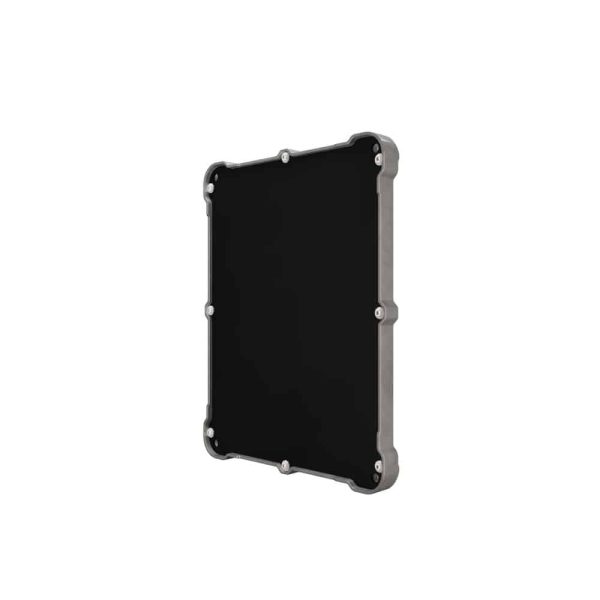

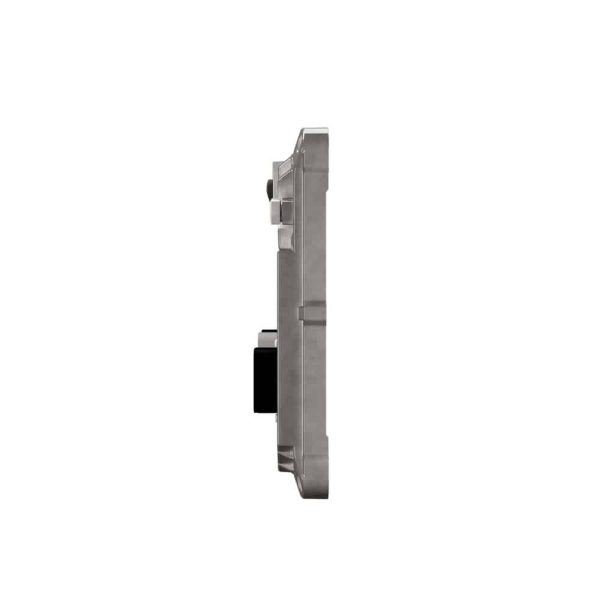

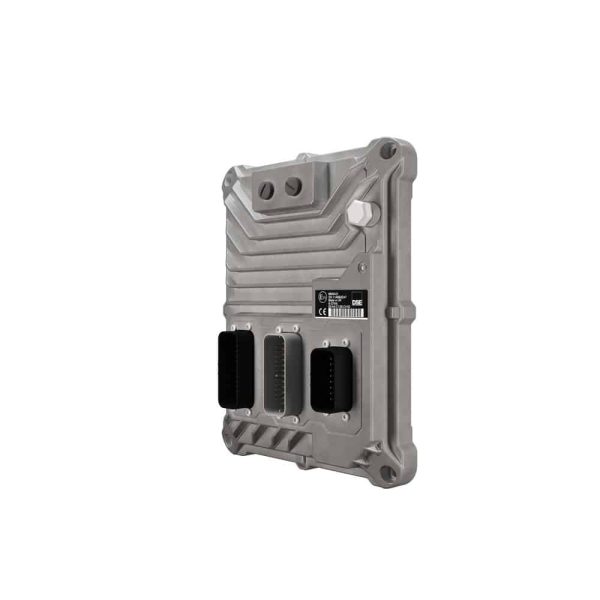

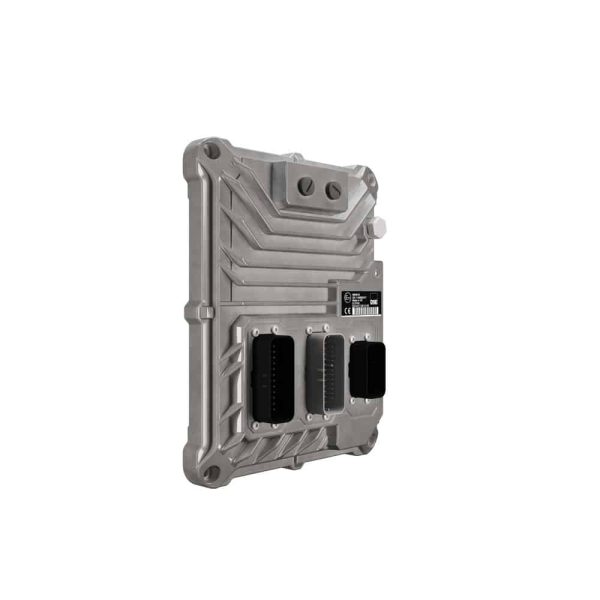

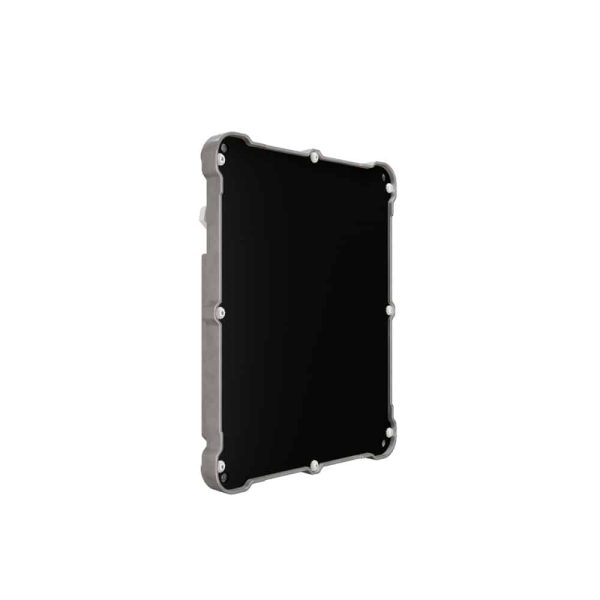

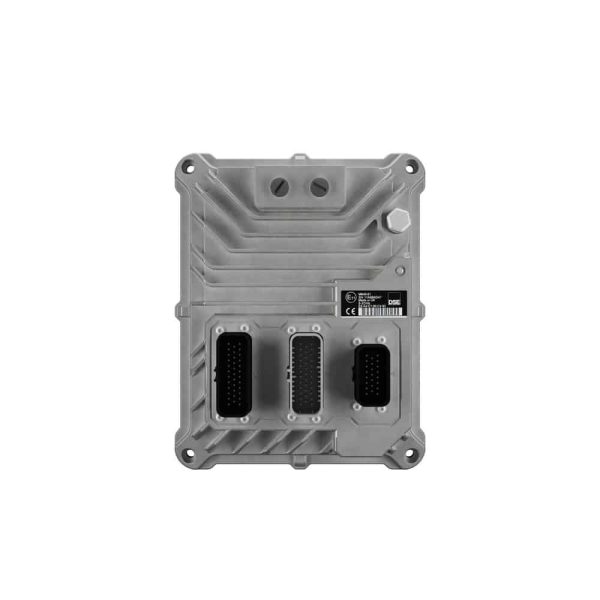

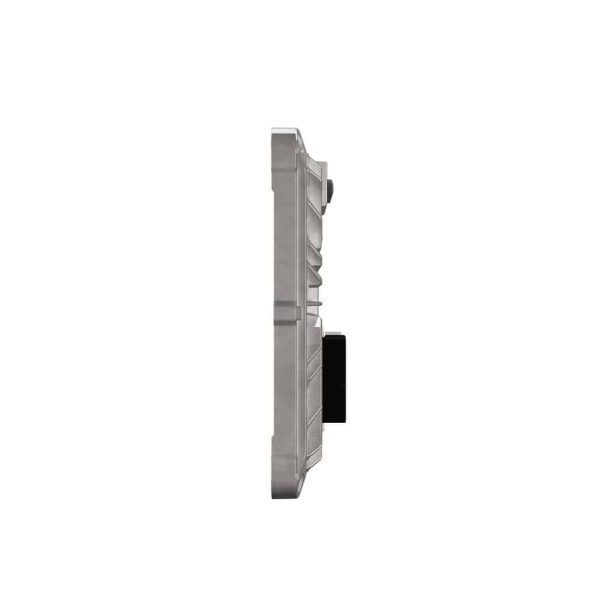

DSEM640

Programmable Controller (68 I/O)

The DSE M640 provides advanced programmable control options for vehicles and off-highway machinery and has been developed specifically for mobile applications. Sealed to IP67, the device incorporates a breather to allow the unit to equalise pressure and reduce condensation whilst filtering out liquids and other contaminants. The unit features Ethernet, USB, CAN and configurable I/O.

Inside the unit is a powerful 32 bit processor with a 220 MHz clock speed for outstanding operating response times. There are also 4 independent CAN interfaces, J1939, CAN Open and Raw CAN. Flexible user programming is provided via CODESYS 3.5.

Overall Size

190 mm x 240 mm x 49 mm (W x H x D)

Weight

1.5 kg
