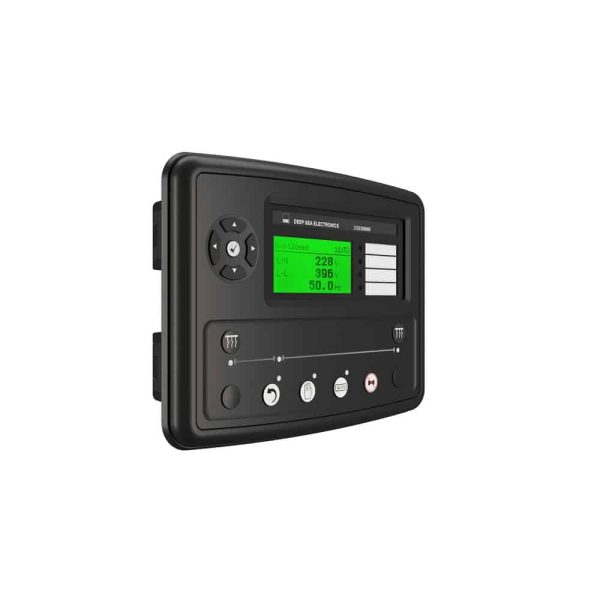

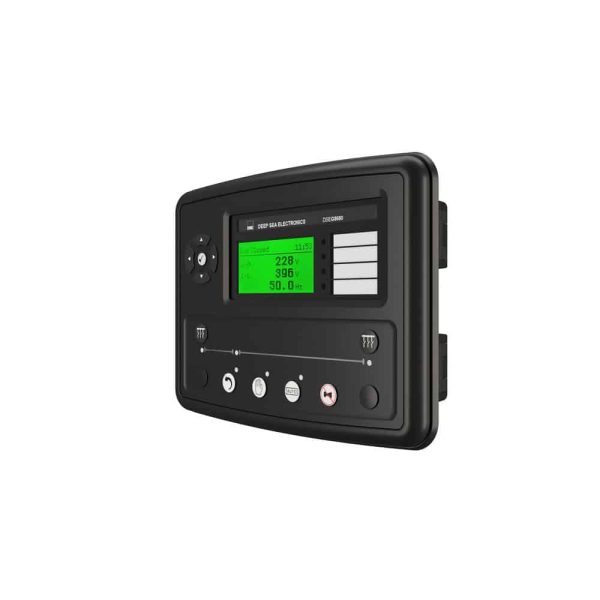

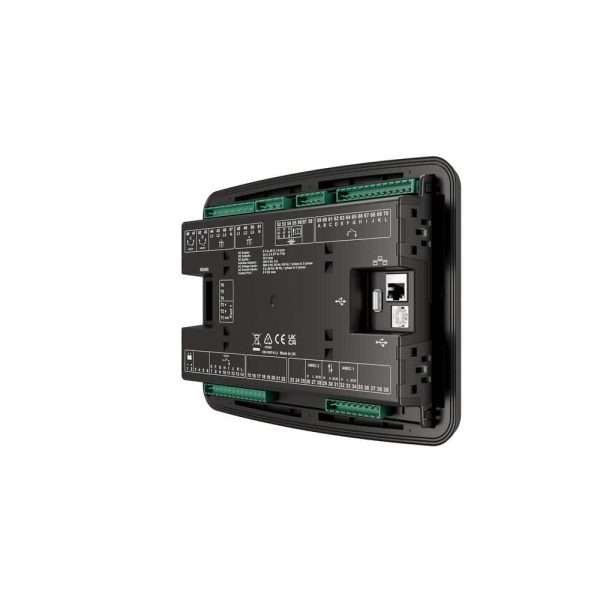

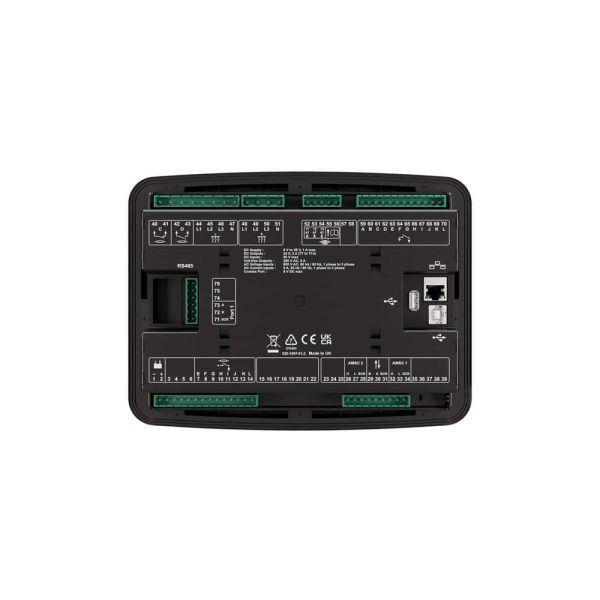

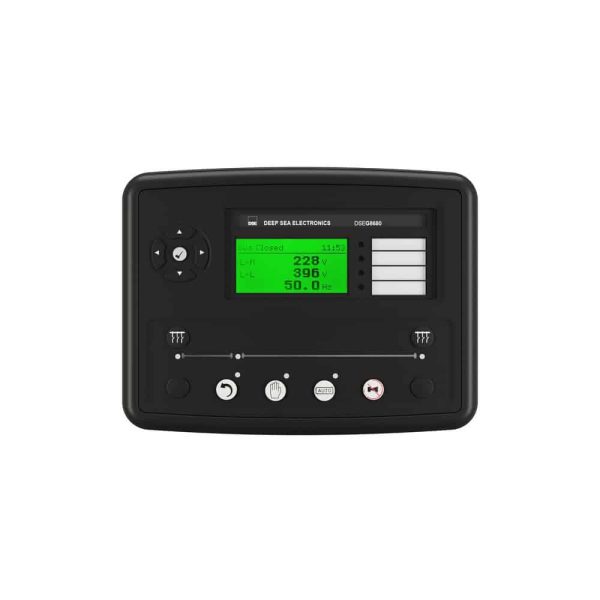

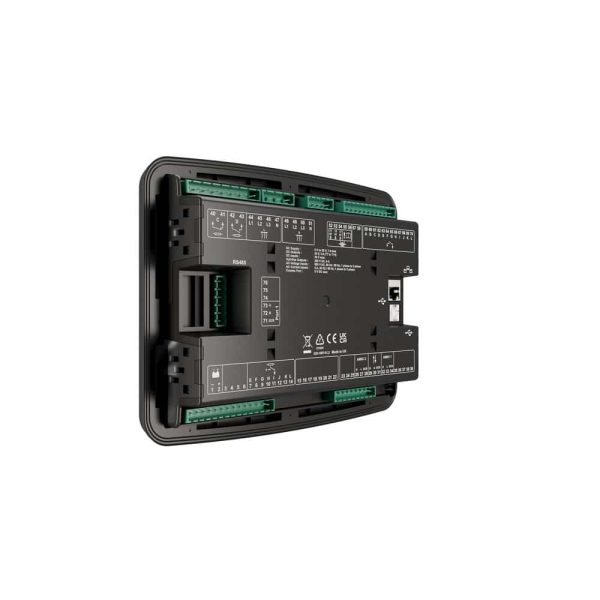

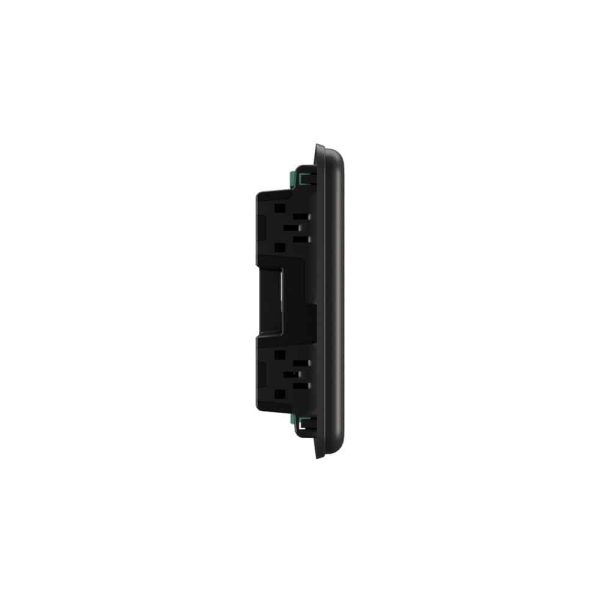

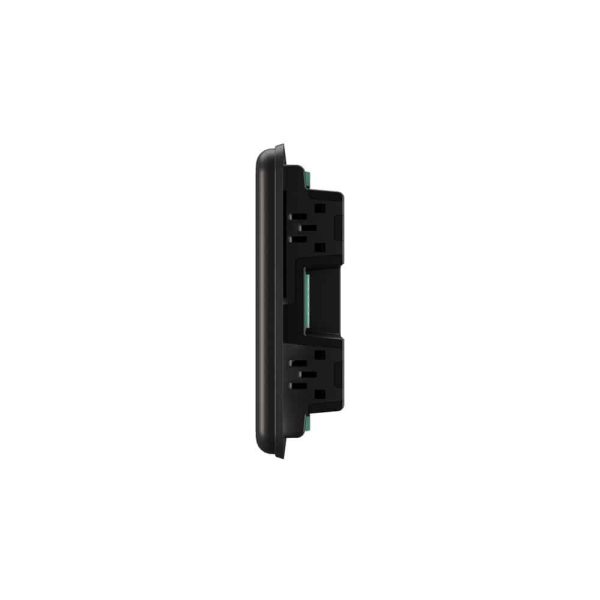

DSEG8680

Bus-Tie Controller

The G8680 controls a generator bus-tie breaker. It automatically manages the synchronising of the 2 buses using the AMSC (advanced multi-set communications) link and has a built-in check sync function. The controller has been designed to work with the DSEG8600 when configured as a single-set / multi-set or mains (utility) controller and with the dedicated G8660 mains (utility) controller.

Overall Size

248 mm x 182.6 mm x 45.2 mm / 9.77” x 7.19” x 1.78”

Panel Cut-Out

250 mm x 189 mm x 50.5 mm / 9.85″ x 7.43″ x 1.99″

Maximum Panel Thickness

8 mm / 0.31”
