DSEG810

DSESCADA 10” Display

Hardware

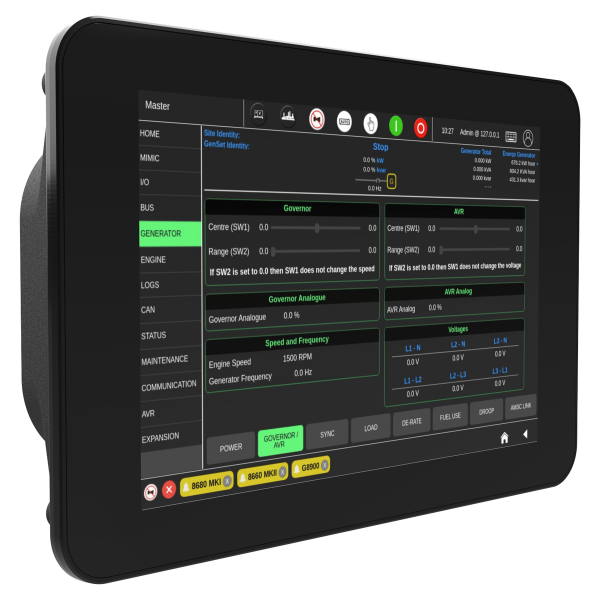

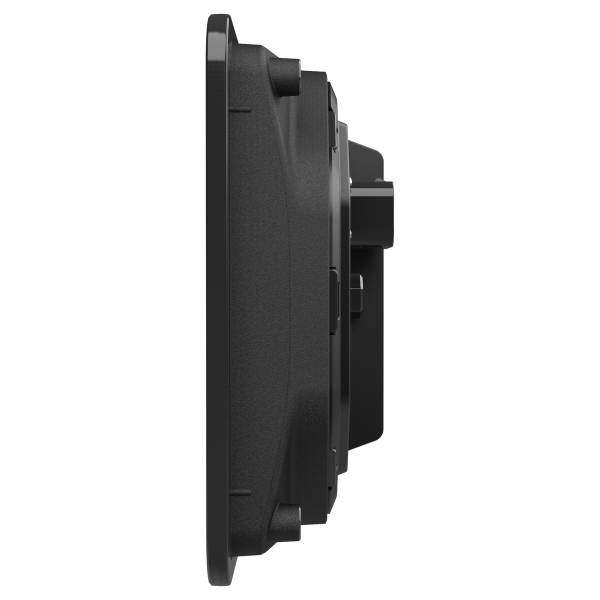

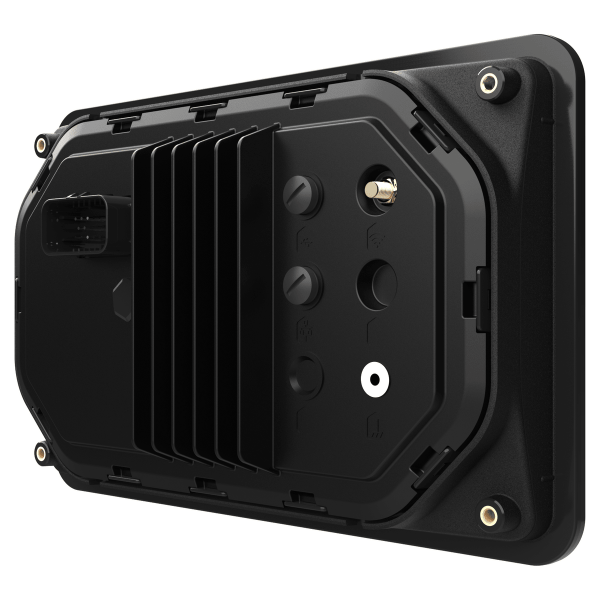

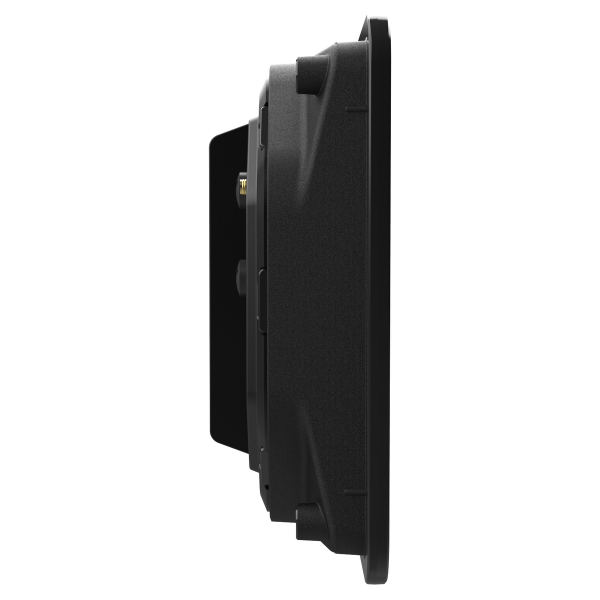

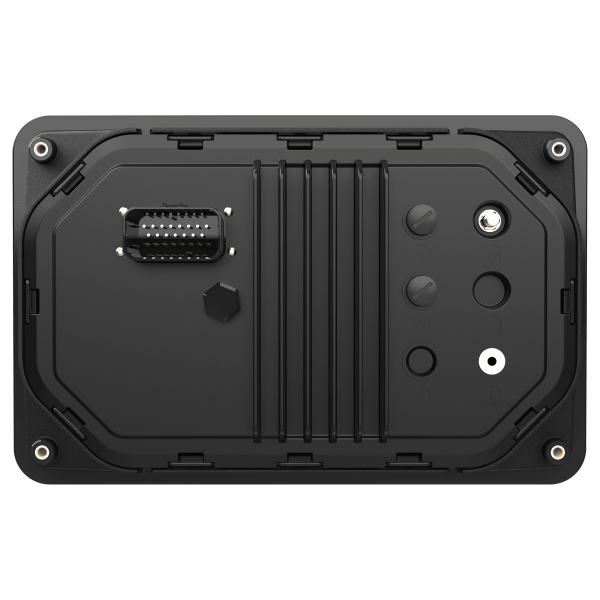

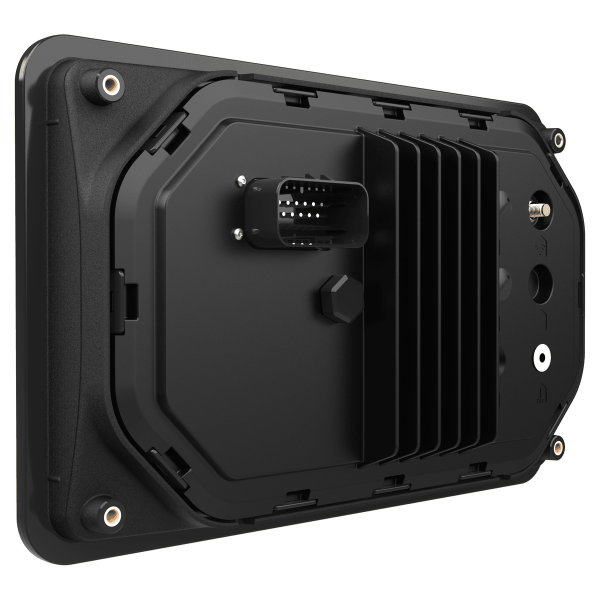

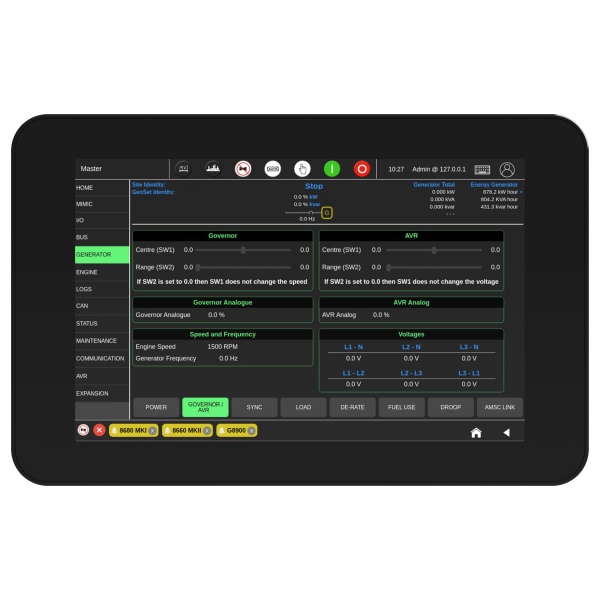

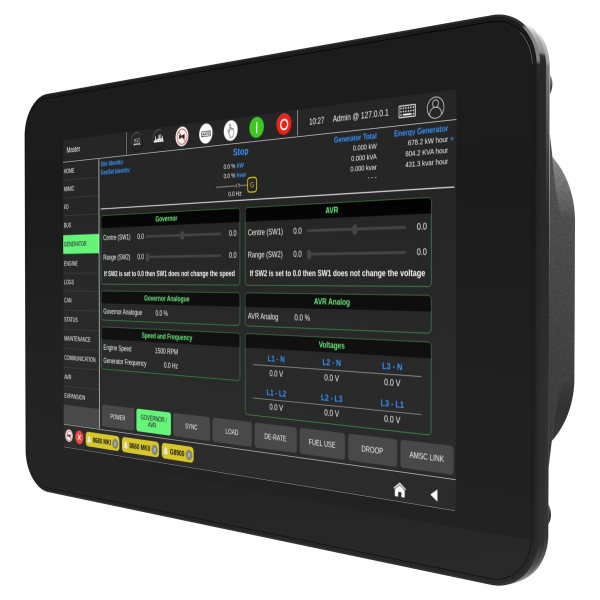

The DSEG810 is a 10” capacitive touchscreen DSE SCADA overview display designed for monitoring and controlling multiple applications. It runs on the reliable LINUX based operating system and is designed for use with the DSEG8-Series paralleling controller platform. When installed, the unit offers IP67 protection all round, and the powerful NXP i.MX 8 QuadXPlus processor ensures smooth operation. The unit is connected to DSEG8-Series controllers via Ethernet.

Software

DSE SCADA is a secure software platform that provides advanced multi-set monitoring & commissioning functionality for DSEG8-Series controllers. The stand-alone software is pre-loaded onto each device, which includes a full software license. The software can be configured to connect with individual / multiple generators on the same site. Users can gain a full system overview from any remote location with an Internet connection. The software provides multi-set commissioning.

PLEASE NOTE

The DSEG810 requires the panel mount kit (100-413-01) found in related products in order to be mounted.

Download Product Documents
