DSEG8007

7” Graphical Colour Remote Overview Display

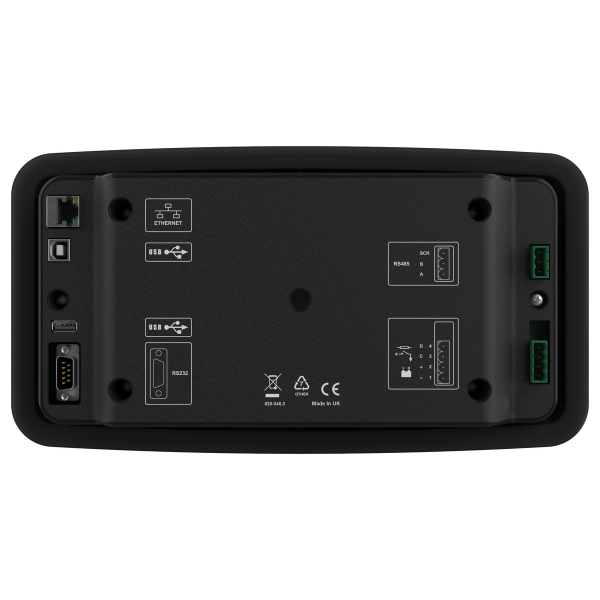

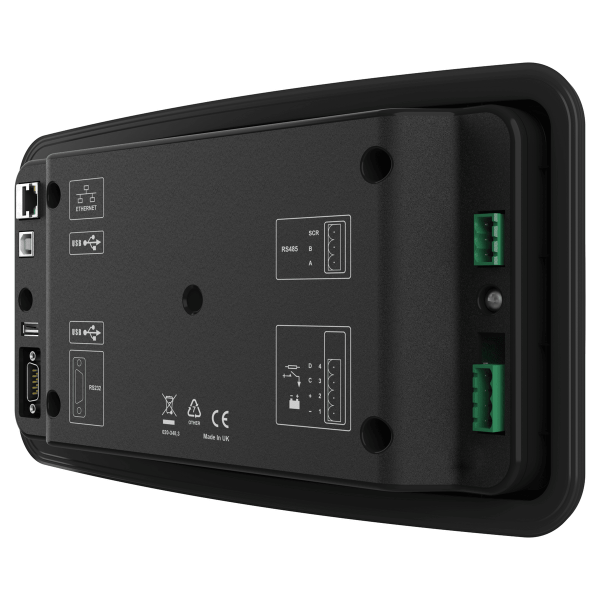

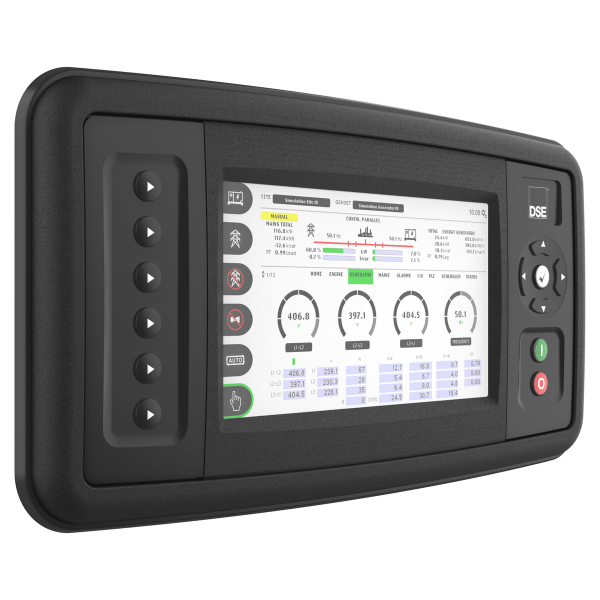

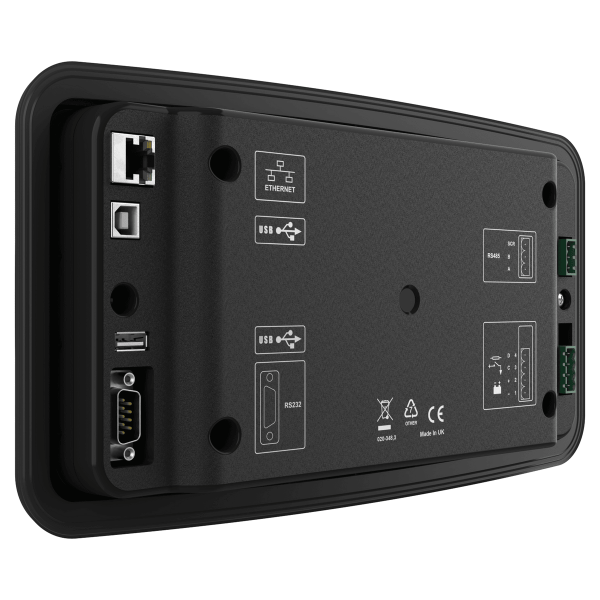

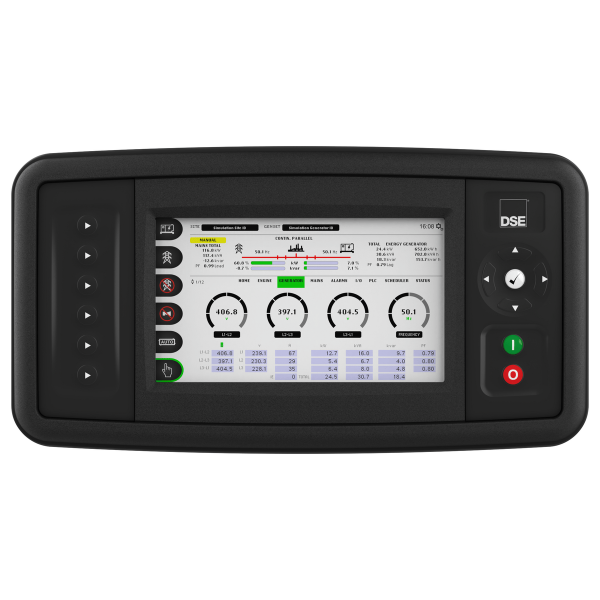

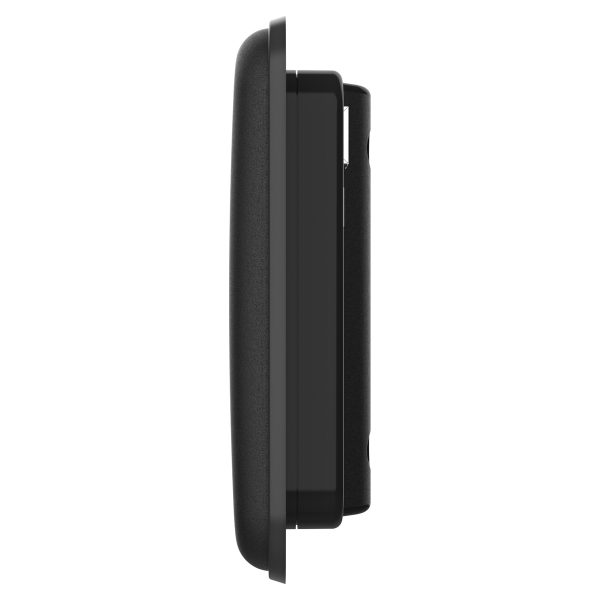

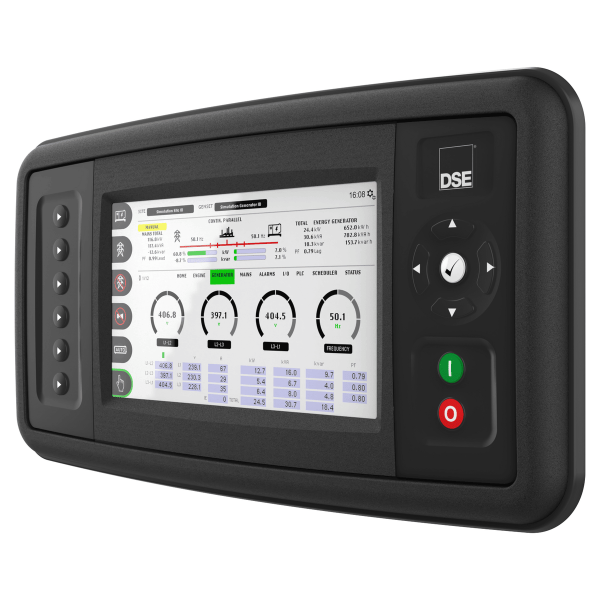

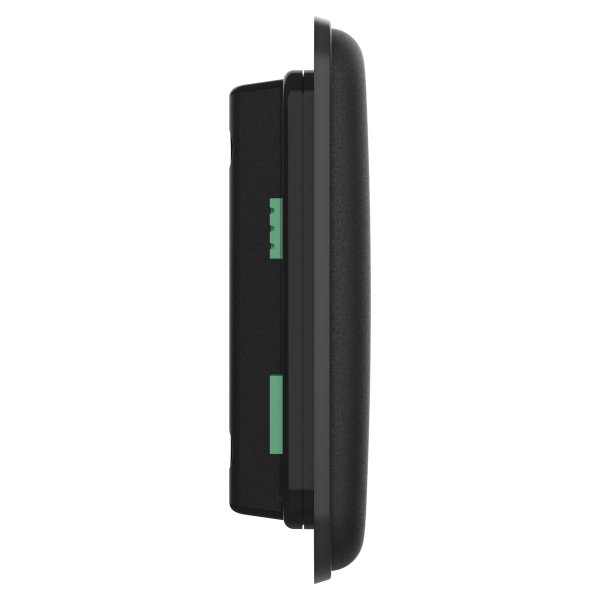

The DSEG8007 is a 7” touch screen, full colour, graphical display providing the user with remote control and monitoring of an entire system. It has been designed to seamlessly integrate with the single-set and multi-set DSEG8600 modules, with configuration options suitable for a wide variety of applications. The DSEG8007 display screen design provides comprehensive large screen graphs, meters and numeric values to indicate engine, generator and mains (utility) status information in a clear and concise format.

Overall Size

316.8 mm x 168.8 mm x 42.8 mm / 12.47 ” x 6.65 ” x 1.69 ”

Panel Cutout Size

282 mm x 136 mm / 11.10 ” x 5.35 ”

Maximum Panel Thickness

8.0 mm / 0.31 ”

Product Variants

G8007-01
