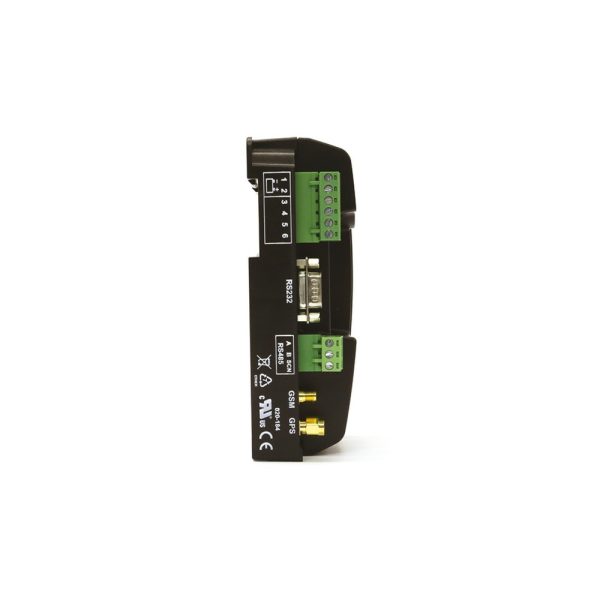

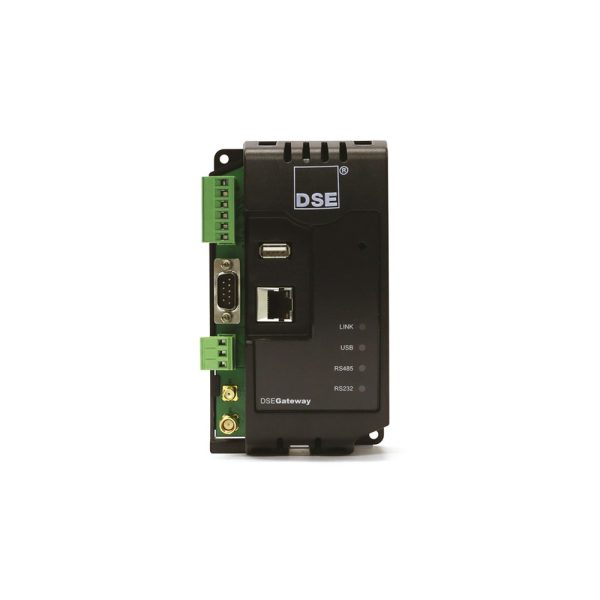

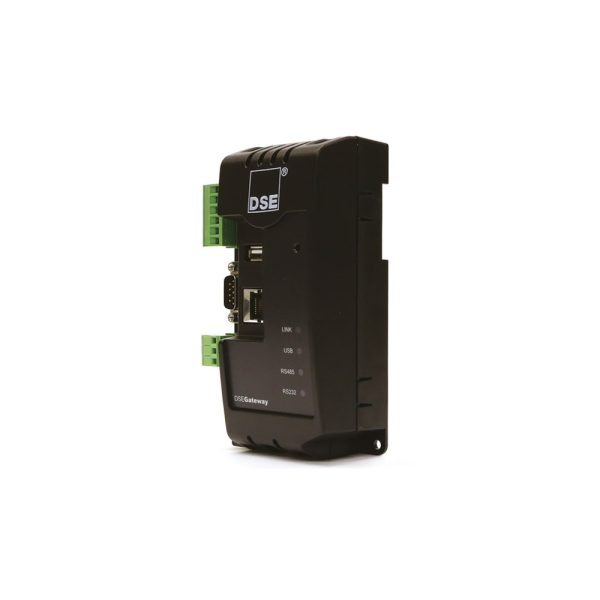

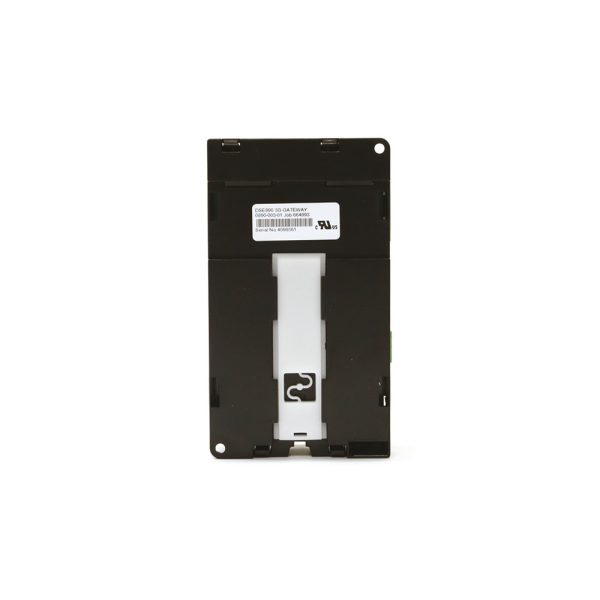

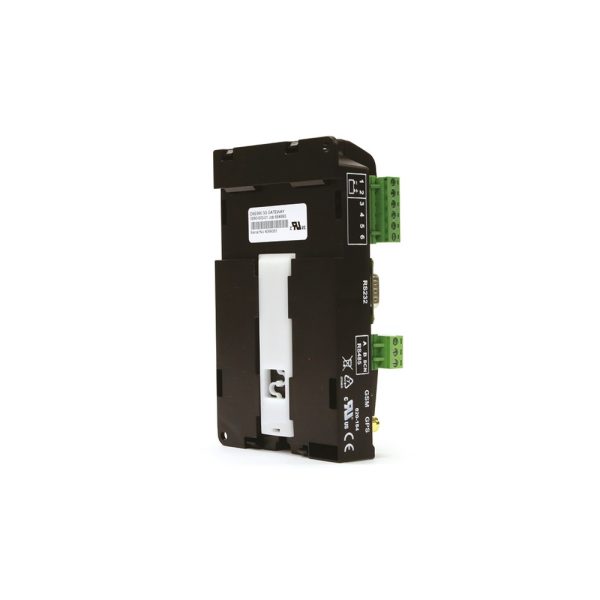

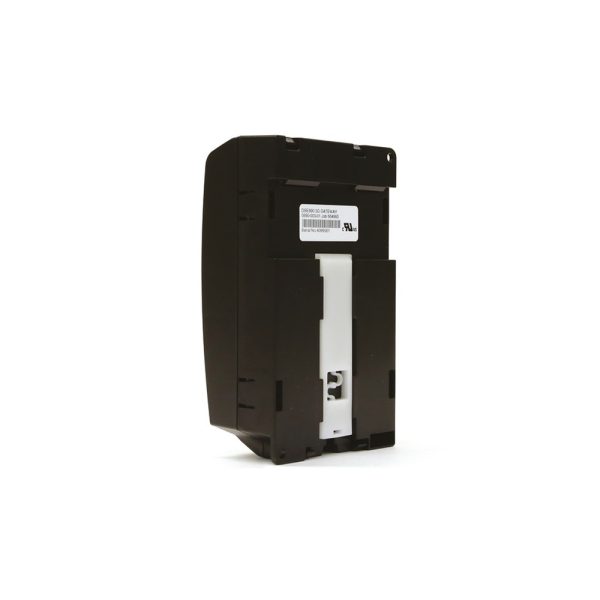

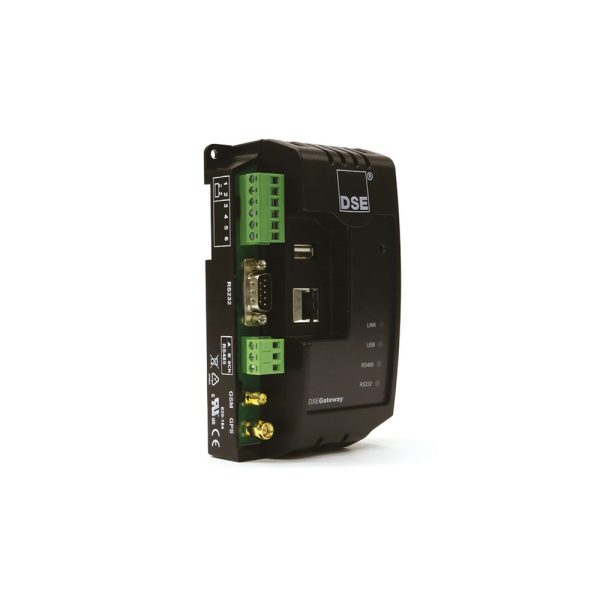

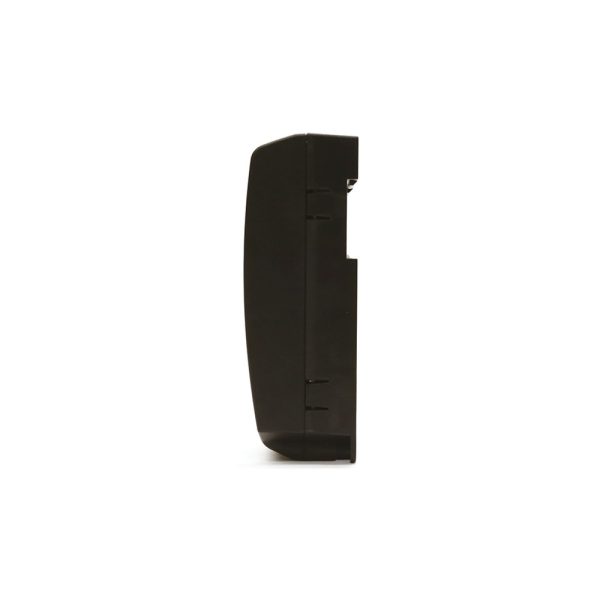

DSE890 MKII

The DSE890 MKII is an Ethernet/4G gateway device that enables compatible DSE controllers to be monitored remotely via DSEWebNet® software or third-party MQTT brokers.

REQUIRES – Combined 4G LTE (Main & Diversity) and GPS Antenna – 020-1053 if 4G Signal is Needed.

Unit also fully compatible with 2G & 3G.

The DSE890 MKII gateway communicates with a maximum of five connected DSE controllers, monitoring instrumentation and operating states. When this data changes, data is logged internally and transmitted from the gateway device to the DSEWebNet® or MQTT broker (Amazon Web Services, Google, IBM etc..).

DSEWebNet® software is accessed using an Internet browser or the dedicated app. Users are able to perform multiple tasks including: monitoring equipment, clearing alarm conditions, starting/stopping equipment and monitoring fuel levels.

Overall Size

85 mm x 149 mm x 51 mm (3.4” x 5.9” x 2.0”)

Weight

0.23kg

Product Variants

0890-04 – 890 DSEWebnet® / IoT Gateway – 4G GSM/Ethernet
