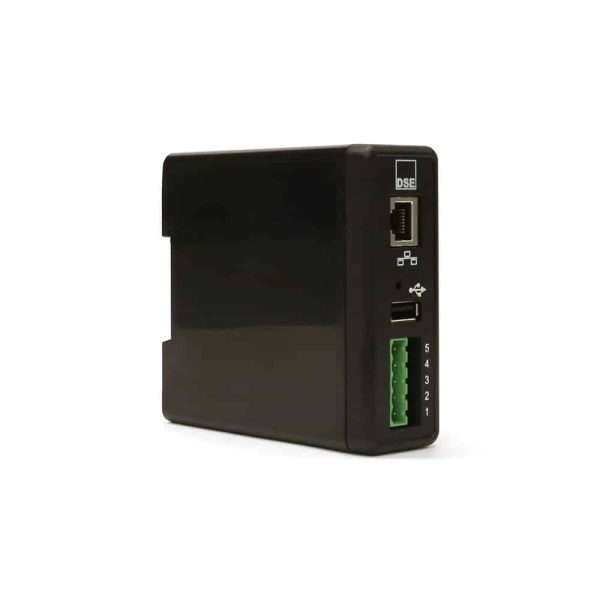

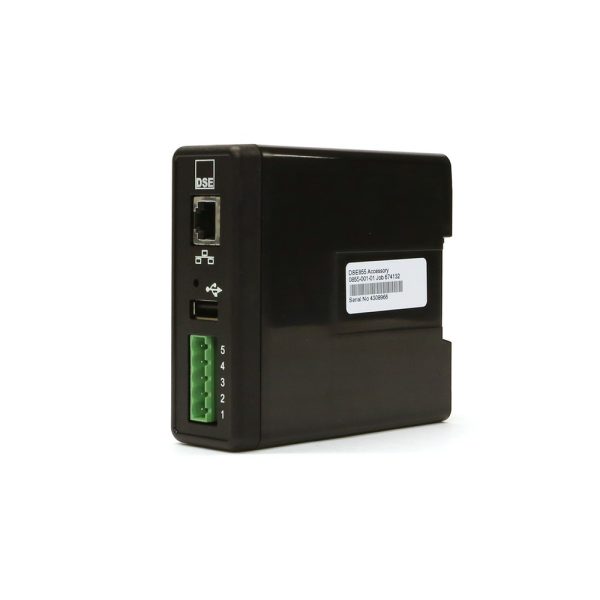

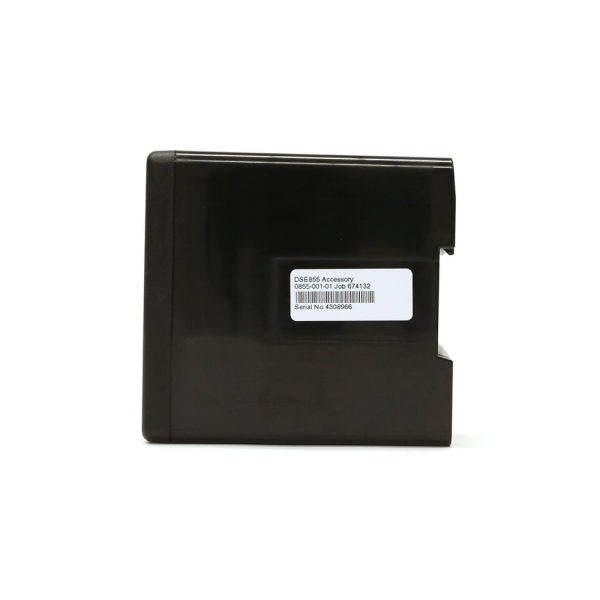

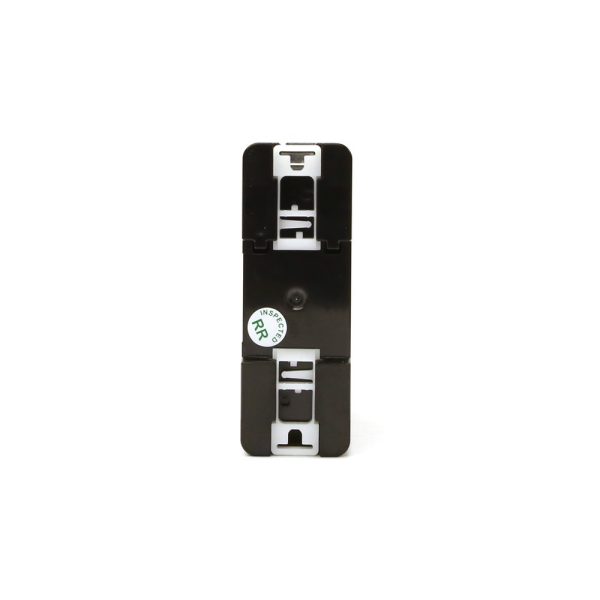

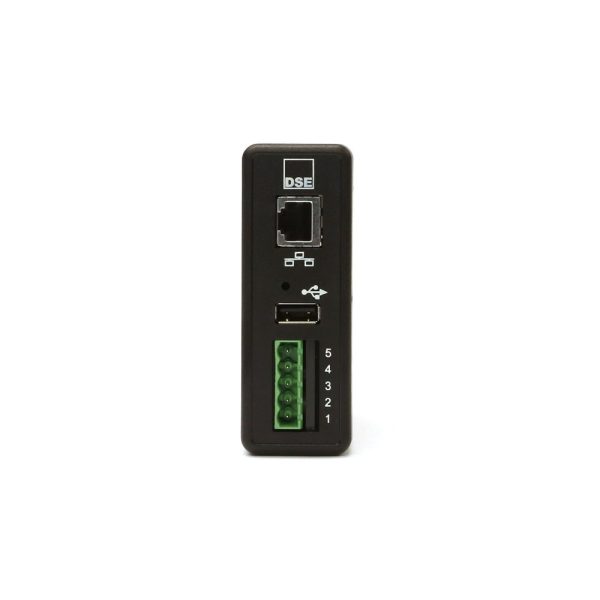

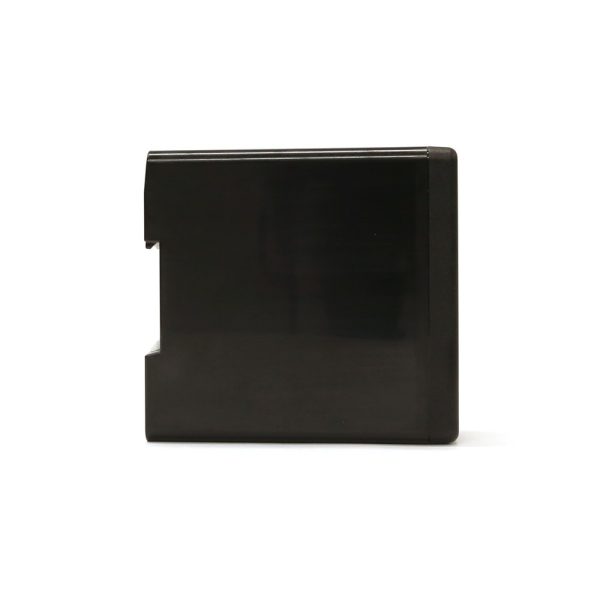

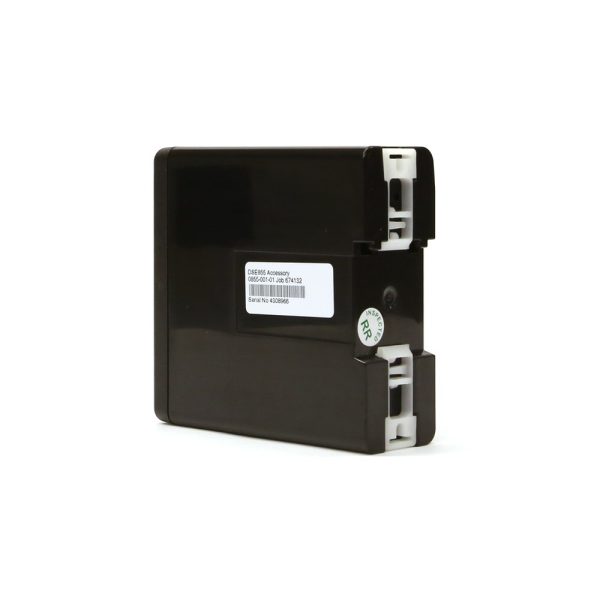

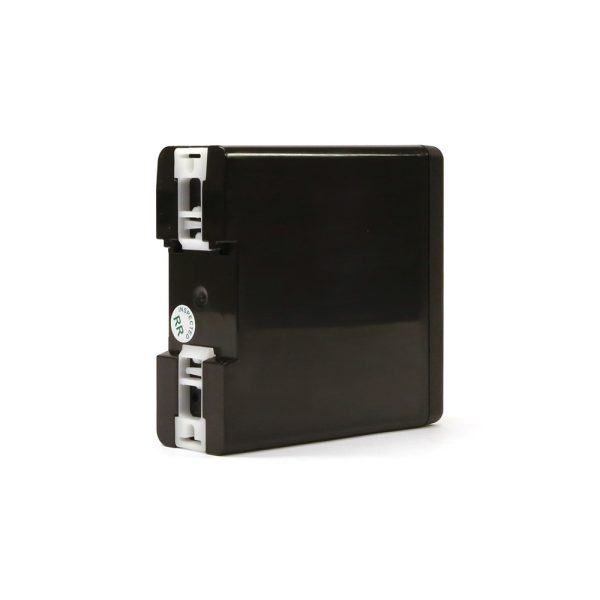

DSE855

The DSE855 communications device allows monitoring of a single DSE controller with USB connectivity over a LAN or WAN connection. To achieve this the DSE855 utilises its in-built web server or MODBUS TCP. In order to use over a LAN connection the on-site router must be configured to be accessible from any global location.

Works with:

Auto Start:

DSEL401MKII/DSE4310/DSE4410/DSE4510/DSE4610/DSE6010 MKII/DSE6110/DSE6610/DSE7110 MKII/DSE7210/DSE7310

Auto Mains (Utility) Failure:

DSE4320/DSE4420/DSE4520/DSE4620/DSE6020/DSE6120 MKII/DSE6620/DSE7120MKII/DSE7220/DSE7320

Overall Size

35 mm x 97 mm x 102 mm (1.4” x 3.8” x 4.0”)

Weight

0.16kg

Product Variants

0855-01 – 855 USB to Ethernet Communications Device

Download Product Documents
