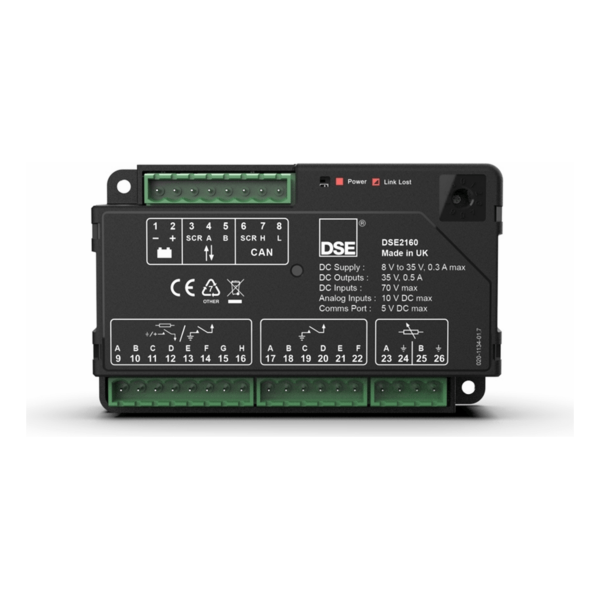

DSE2160

The DSE2160 DSENet® Input / Output Expansion Module has been developed for use with the DSEG8600 and DSEM-Series platforms. The DSE2160 extends the host modules input and output capabilities for increased application flexibility. This is achieved by providing an additional 8 inputs, consisting of 2 analogue inputs (both can be configured as digital) and 6 digital inputs (digital input A can be configured as a frequency input, pulse counter or RPM input). The DSE2160 also provides 8 additional digital outputs. All 8 outputs can be individually configured as a digital input, positive switching DC output or a negative switch DC output.
