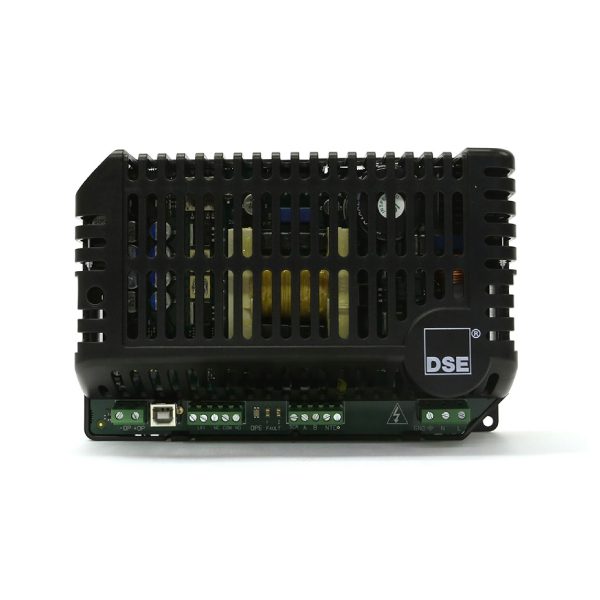

DSE9470 MKII

24 Volt 10 Amp Intelligent Battery Charger

UL RECOGNISED (USA & Canada) – NFPA 20 (QWIR2) COMPLIANT

The DSE9470 MKII is a UL recognised intelligent switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.

Overall Size

80 mm x 205 mm x 135 mm (3.1” x 8.0” x 5.3”)

Weight

0.78kg

Product Variants

9470-01 – 24 V 10 A Intelligent Battery Charger (USA – UL – 110 V – 250 V)

9470-A4 – 24 V 10 A Intelligent Battery Charger (USA & Canada – UL – 110 V – 150 V)
